230V 300W Ceramic igniter with voltage limiting diode for pellet boilers

  • 1
  • 2

Brand Name : KRHX

Model Number : KR-H4

Certification : CE

Place of Origin : China

MOQ : 10

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 1000PCS/Week

Delivery Time : 5-8 workdays

Packaging Details : In cartons each containing 20 boxes

Nmae : CERAMIC IGNITION RESISTANCE

Max Working Temperature : 600-1100℃

Feature : Sustainable

Voltage : 220V/230V

Power : 300-350W

Application : Pellet stove

Dimension(L*W*H) : φ11.5*106mm

Flange : Ceramic flange

Cable : crimp cable sleeves

Connector : Green 3 PIN plug, 5.08 pitch

New style : voltage limiting diode

Contact Now

230V 300W Ceramic igniter with voltage limiting diode for pellet boilers

CERAMIC IGNITER ELEMENT KIT

230V 300W Ceramic igniter with voltage limiting diode for pellet boilers

Introducing the Kairui ceramic biomass igniter range, an advance in ignition technology for solid wood fuels. Ceramic Igniter for pellet stoves, designed to ignite wood pellets and wood chips in stoves, boilers and burners. Tested for more than 10,000 ON/OFF cycles, with rapid ignition times.

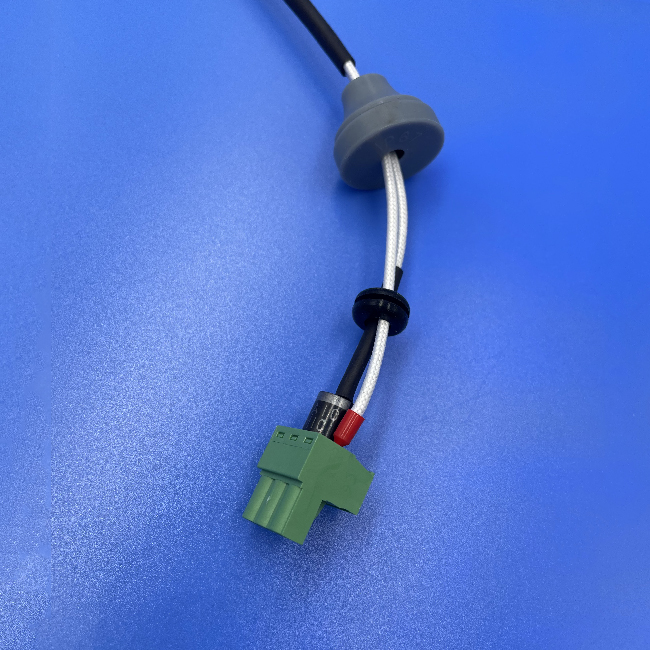

New design

a. Green 3 PIN plug, 5.08 pitch

b. Clamped sleeves at the end of the kavla - for safety.

c. I conical rubber - rubber bushing - for 20 mm hole

230V 300W Ceramic igniter with voltage limiting diode for pellet boilers

Specification

KR Series Specification Dimension Max. Dia. Flange Max Temperature
KR-H4 220V
300-350W		 11.5 x 106 mm 17.5 mm 1020 Deg.C

230V 300W Ceramic igniter with voltage limiting diode for pellet boilers

Application

Ceramic igniters suitable for ignition of wood pellet, logs, wood chips, coal for stoves, boilers and burners, includes the following:

•Wood pellet stove

•Wood pellet boiler

•Wood pellet burner

•Wood chips burner

•Straw burner

•Other biomass burner

•Gas Stove Burner ect

Product-package

All ceramic igniter are packed in cartons lined with EPE, foam, 40 pcs to a box.4 boxes to a carton.

230V 300W Ceramic igniter with voltage limiting diode for pellet boilers

Company profile

Kairui Corporation specialises in ceramic hot surface igniters and has many years experience of working closely with customers to develop bespoke solutions for innovative appliance manufacturers. Kairui are a trusted manufacturer of hot surface ignition products to many industry sectors.
